All-in-One HP pro

آل‌این‌وان‌ها کامپیوترهایی هستند شبیه یک مانیتور، که همه سخت‌افزار کامپیوتر در پشت مانیتور جاسازی شده است. و دیگر کیس دیگری نیاز ندارد.

همه امتیاز یک آل‌این‌وان به زیبایی و کم‌جایی آن است.

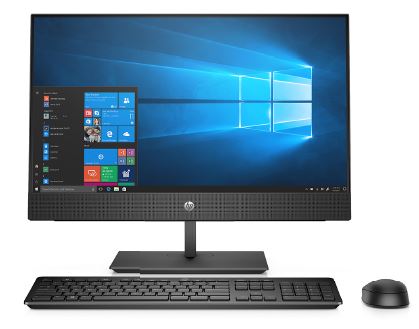

این آل‌این‌وان HP هم به همراه کیبورد و موس اصل زیباست!

با سی‌پی‌یو i5 نسل نهم که 6 هسته فیزیکی دارد. با 9 مگ کش. با رم DDR4 که ابتدا 8 گیگ است اما قابل ارتقاء است. با هارد از نوع SSD که در اینجا 256 گیگ. با صفحه نمایش 24 اینچ فول‌اچ‌دی.

شما می‌توانید این کامپیوتر را بصورت نو و آکبند درون کارتن بخرید.




 مشخصات سی‌پی‌یو را بصورت کامل می‌توانید ببینید:

Supplemental Information

Expansion Options

Package Specifications


و مشخصات آل‌این‌وان را از سایت اچ‌پی:

Processors

Specification
Description
Intel Core i9-9900 Processor
3.1 GHz, up to 4.9 GHz with Intel Turbo Boost technology
16 MB cache, 8 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i9-9900T Processor
2.1 GHz, up to 4.4 GHz with Intel Turbo Boost technology
16 MB cache, 8 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i7-9700 Processor
3.0 GHz, up to 4.8 GHz with Intel Turbo Boost technology
12 MB cache, 8 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i7-9700T Processor
2.0 GHz, up to 4.3 GHz with Intel Turbo Boost technology
12 MB cache, 8 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i5-9600 Processor
3.1 GHz, up to 4.9 GHz with Intel Turbo Boost technology
9 MB cache, 6 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i5-9600T Processor
2.3 GHz, up to 3.9 GHz with Intel Turbo Boost technology
9 MB cache, 6 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i5-9500 Processor
3.0 GHz, up to 4.1 GHz with Intel Turbo Boost technology
9 MB cache, 6 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i5-9500T Processor
2.2 GHz, up to 3.7 GHz with Intel Turbo Boost technology
9 MB cache, 6 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i3-9300 Processor
3.7 GHz base frequency
8 MB cache, 4 cores
Intel UHD Graphics 630
Intel Core i3-9300T Processor
3.2 GHz base frequency
8 MB cache, 4 cores
Intel UHD Graphics 630
Intel Core i3-9100 Processor
3.6 GHz base frequency
6 MB cache, 4 cores
Intel UHD Graphics 630
Intel Core i3-9100T Processor
3.1 GHz base frequency
6 MB cache, 4 cores
Intel UHD Graphics 630
Intel Core i7-8700 Processor
3.2 GHz, up to 4.6 GHz with Intel Turbo Boost technology
12 MB cache, 6 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i7-8700T Processor
2.4 GHz, up to 4.0 GHz with Intel Turbo Boost technology
12 MB cache, 6 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i5-8500 Processor
3.0 GHz, up to 4.1 GHz with Intel Turbo Boost technology
9 MB cache, 6 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i5-8500T Processor
2.1 GHz, up to 3.5 GHz with Intel Turbo Boost technology
9 MB cache, 6 cores
Intel UHD Graphics 630
Supports Intel vPro technology
Intel Core i3-8100 Processor
3.6 GHz base frequency
6 MB cache, 4 cores
Intel UHD Graphics 630
Intel Core i3-8100T Processor
3.1 GHz base frequency
6 MB cache, 4 cores
Intel UHD Graphics 630
Intel Pentium Gold G5420 Processor
3.8 GHz base frequency
4 MB cache, 2 cores
Intel UHD Graphics 610
Intel Pentium Gold G5420T Processor
3.2 GHz base frequency
4 MB cache, 2 cores
Intel UHD Graphics 610
Intel Pentium Gold G5600 Processor
3.9 GHz base frequency
4 MB cache, 2 cores
Intel UHD Graphics 630
Intel Pentium Gold G5600T Processor
3.3 GHz base frequency
4 MB cache, 2 cores
Intel UHD Graphics 630
Intel Pentium Gold G5620 Processor
4.0 GHz base frequency
4 MB cache, 2 cores
Intel UHD Graphics 630
Intel Celeron G4930 Processor
3.2 GHz base frequency
2 MB cache, 2 cores
Intel UHD Graphics 610
Intel Celeron G4930T Processor
3.0 GHz base frequency
2 MB cache, 2 cores
Intel UHD Graphics 610
Chipset
Intel Q370
NOTE:
Multicore is designed to improve performance of certain software products. Not all customers or software applications necessarily benefit from use of this technology. 64-bit computing system required. Performance and clock frequency vary depending on application workload and hardware and software configurations. Intel numbering is not a measurement of higher performance.

Some functionality of vPro technology, such as Intel Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Future virtual appliances applications dependent on third-party software and compatibility to be determined.

Display

Specification
Description
Display panel
60.45 cm (23.8 in) diagonal IPS widescreen WLED backlit anti-glare LCD (1920 x 1080)
Non-touch or optional touch
Projected Capacitive touch supports up to 10 touch-points
IPS WLED Backlit LCD
250 nits, 72% NTSC
50.8 cm (20.0 in) diagonal TN widescreen WLED backlit anti-glare LCD (1600 x 900) Non-touch
TN WLED Backlit LCD
IPS WLED Backlit LCD
250 nits, 72% NTSC
NOTE:
Resolutions are dependent upon monitor capability, and resolution and color depth settings.

Actual performance might vary.

Memory

Specification
Description
DDR4-2666
Maximum: 64 GB
Number of slots: (2) SODIMM (slots are customer accessible/upgradeable)
Up to 2666 MT/s
Configurations
4 GB total system memory (4 GB x 1)
8 GB total system memory (4 GB x 2)
8 GB total system memory (8 GB x 1)
16 GB total system memory (8 GB x 2)
16 GB total system memory (16 GB x 1)
32 GB total system memory (16 GB x 2)
32 GB total system memory (32 GB x 1)
64 GB total system memory (32 GB x 2)
NOTE:
Maximum memory capacities assume Windows 64-bit operating systems. With Windows 32-bit operating systems, memory above 3 GB might not all be available due to system resource requirements.

Graphics

Specification
Description
Integrated graphics
Intel UHD Graphics 630 (integrated on 9th and 8th gen Core i9/i7/i3, Pentium Gold G5600, G5620, G5600T)
Intel UHD Graphics 610 (integrated on Pentium Gold G5420, G5420T, Celeron G4930, G4930T)
Discrete (optional) graphics
AMD Radeon 530 with 2 GB GDDR5 (must be configured at purchase)

Storage

Specification
Description
SATA drives
500 GB, 7.2 K rpm, 6.35 cm (2.5 in)
1 TB, 7.2 K rpm, 6.35 cm (2.5 in)
2 TB, 5.4 K rpm, 6.35 cm (2.5 in)
Self-Encrypting drives (SED HDD)
500 GB, 7.2 K rpm, 6.35 cm (2.5 in), SED Opal 2
500 GB, 7.2 K rpm, 6.35 cm (2.5 in), SED FIPS
Solid State Drives (SSD)
256 GB, SATA 3 (6.0 Gb/s), 6.35 cm (2.5 in), TLC SSD
512 GB, SATA 3 (6.0 Gb/s), 6.35 cm (2.5 in), TLC SSD
256 GB, SATA (6.0 Gb/s), 6.35 cm (2.5 in), TLC SED Opal 2
512 GB, SATA (6.0 Gb/s), 6.35 cm (2.5 in), TLC SED Opal 2
256 GB, SATA (6.0 Gb/s), 6.35 cm (2.5 in), TLC SED FIPS
512 GB, SATA (6.0 Gb/s), 6.35 cm (2.5 in), TLC SED FIPS
PCIe NVMe TLC SSD drives
256 GB M.2 2280 PCIe NVMe SSD
512 GB M.2 2280 PCIe NVMe SSD
128 GB M.2 2280 PCIe NVMe TLC SSD
256 GB M.2 2280 PCIe NVMe TLC SSD
512 GB M.2 2280 PCIe NVMe TLC SSD
1 TB M.2 2280 PCIe NVMe TLC SSD
256 GB M.2 2280 PCIe NVMe Self Encrypted Opal 2 TLC SSD
512 GB M.2 2280 PCIe NVMe Self Encrypted Opal 2 TLC SSD
Optical Disc Drives (ODD)
HP 9.5 mm Slim DVD-ROM
HP 9.5 mm Slim DVD Writer
HP 9.5 mm Slim Blu-Ray Writer
Media card reader
SD 3.0 with 4-in-1 Interface (supports SD, SDXC, SDHC, and UHS-I)
NOTE:
For hard drives and solid state drives, GB = 1 billion bytes and TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB of system disk is reserved for the system recovery software.

Keyboards/pointing devices

Specification
Description
Keyboards
HP USB Business Slim Standalone Wired Keyboard
HP USB Business Slim Wired SmartCard CCID Keyboard
HP USB & PS/2 Washable Standalone Wired Keyboard
HP Collaboration Wireless Keyboard
HP USB Collaboration Wired Keyboard
HP USB Conferencing Wired Keyboard
HP USB Wired Keyboard
HP USB Value Keyboard
Mice
HP USB Universal Wired Mouse
HP USB Optical Mouse
HP USB Hardened Mouse
HP USB 1000dpi Laser Mouse
HP USB & PS/2 Washable Wired Mouse Standalone
HP USB Premium Wired Mouse
HP USB Fingerprint Reader Wired Mouse
Combos
HP Premium Wireless Keyboard and Mouse
HP Premium USB Wired Keyboard and Mouse
HP Business Slim Wireless Keyboard and Mouse
HP USB Keyboard and Mouse Healthcare Edition
HP USB Value Keyboard and Mouse
HP USB PS/2 Washable Keyboard and Mouse Wired

Adapters and Cables

Specification
Description
Adapters
HP DisplayPort to DVI-D Adapter
HP DisplayPort to HDMI True 4K Adapter
HP DisplayPort to VGA Adapter
HP USB to Serial Port Adapter
Cables
HP DisplayPort Cable

Ports/slots/bays

Specification
Description
Ports
USB ports
(2) USB 3.1 Gen 1 (rear); (2) USB 3.1 Gen 1 (side)
(1) USB Type-C 2.0 Gen 2 (15 W) (side)
NOTE:
Upgradeable to USB 3.1 Gen 2 port if configured with additional video port and/or Intel vPro.
Video ports
(1) Configurable video port
NOTE:
Choice of DisplayPort 1.2, HDMI 2.0.
(1) DisplayPort 1.2 (rear)
Audio ports
(1) Headphone (front)
(1) CTIA Universal Audio Jack (side)
Network/communication ports
(1) RJ-45 Ethernet (rear)
Power
(1) Power port
Storage connectors
(1) AiO SATA storage connector
Optional
(1) Rear serial port (RS-232)
Expansion slots
(1) M.2 PCIe x1 2230 (for WLAN)
(1) M.2 PCIe x4 2280/2230 Combo (for storage)
Bays
(1) 9.0 mm Slim Optical Disc Drive (ODD)
NOTE:
Must be configured at time of purchase.
(1) SD card reader (optional)
(1) 6.35 cm (2.5 in) Internal Storage Drive

Audio/multimedia

Feature
Description
Audio (integrated)
Conexant CX3601
2 W per channel class D stereo amplifier for the internal speakers only
(1) Side headset connector supports a CTIA style headset and is retaskable as a Line-in, Line-out, Microphone-in or Headphone-out port
Optional features
For 50.8 cm (20.0 in)
Webcam light
HD webcam
Webcam privacy shutter
Microphone
For 60.45 cm (23.8 in) Touch & Non-Touch
FHD webcam with Infrared (IR) sensors

Networking/communications

Specification
Description
Ethernet (RJ-45) integrated
Intel I219-LM Gigabit Network Connection (standard)
Wireless LAN
Intel Wi-Fi 6 and Bluetooth 5.0 802.11ax (2x2) vPro, supporting gigabit file transfer speed)' Intel Wi-Fi 6 and Bluetooth 5.0 802.11ax (2x2) non-vPro, supporting gigabit file transfer speed)
Intel Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth 5.0 (vPro, supporting gigabit file transfer speeds)
Intel Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth 5.0 (non-vPro, supporting gigabit file transfer speeds)
Realtek RTL8822BE 802.11ac (2x2) Wi-Fi with Bluetooth
Realtek RTL8821CE 802.11ac (1x1) Wi-Fi with Bluetooth
Realtek RTL8723DE 802.11b/g/n (1x1) with Bluetooth Combo Card
NOTE:
Wireless access point and Internet service required and not included. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it might affect the ability of the device to communicate with other 802.11ac WLAN devices.
